GD&T / FAI / PPAP CONTROL STACK

GD&T, FAI and PPAP Documentation Built Into Every CNC Release.

Fanuc Cnc supports tooling, equipment and machinery buyers with controller-aware machining records, inspection-ready files and release notes that survive supplier quality review.

[01]

CNC Control Parts

Controller panels, drive modules, spindle-side items and configured replacement kits tied to machine serial context.

Review catalog ->

[02]

Tooling Packages

Tool holders, carbide inserts, fixtures and offset documentation released as a controlled manufacturing package.

Build package ->

[03]

FAI Evidence

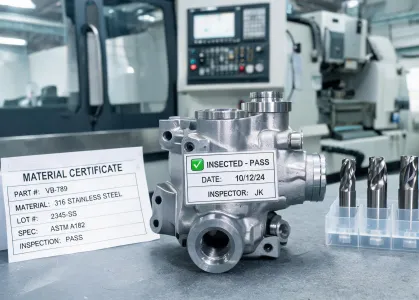

Ballooned drawings, AS9102 forms, CMM exports and material certificates aligned before first-article shipment.

See FAI path ->

[04]

PPAP Release

Dimensional results, control plans, capability summaries and corrective-action logs prepared for PPAP review.

Map PPAP file ->

[05]

Retrofit Records

Machine upgrade notes, spare-part alternates and validation checkpoints for controlled modernization projects.

Submit machine file ->

2.7M+QMS recordsmachining events archived

6,388+RFQ linescontroller-linked requests

23 yrsdisciplineCNC documentation practice

27checkpointsinspection release gates

2pathsprototype or production release

Operational indicators are maintained in internal QMS records, trailing 12-month or current program basis unless otherwise noted.

CONTROLLED ENGINEERING

Every quote moves through evidence, not guesswork.

Print interpretation before cycle planning

Critical characteristics are tagged by datum structure, tolerance type and inspection method before tooling or controller parameters are released.

Controller context stays attached

Fanuc-series notes, ladder constraints, offset strategy and spare-part alternates are preserved so purchasing, maintenance and quality teams see the same record.

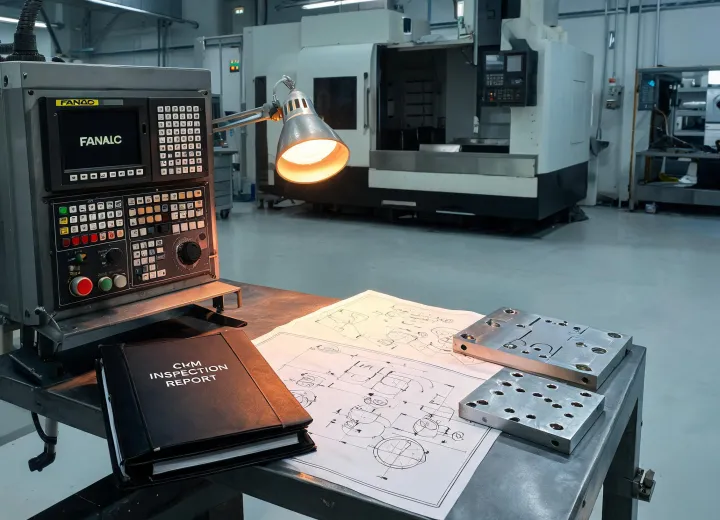

First article inspection document packet

FAI and PPAP are planned at RFQ

The documentation burden is quoted with the part, including sample size, capability targets, submission level and the evidence required by downstream auditors.

RELEASE TABLE

Documentation options by manufacturing intent.

Drawing review	Datum scheme, tolerance risk and material condition notes captured before quote release.
Inspection	Targeted dimensional report on critical-to-function features.
Delivery file	Setup notes, material certificate and deviation log when applicable.

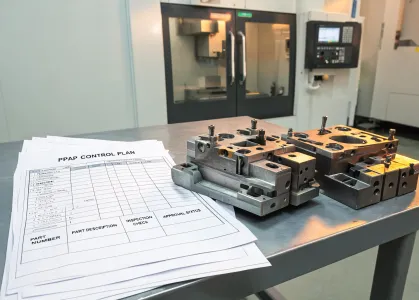

Control plan	In-process checks, sampling frequency and reaction plan documented for repeat orders.
Capability	Cpk targets assigned to selected dimensions after process stability is demonstrated.
Traceability	Lot, revision, operator and machine context retained in QMS records.

FAI	AS9102-style balloon map, dimensional results and material evidence.
PPAP	Submission-level matrix, control plan, dimensional report and corrective-action log.
Review	Open issues tracked by responsible owner and due date.
